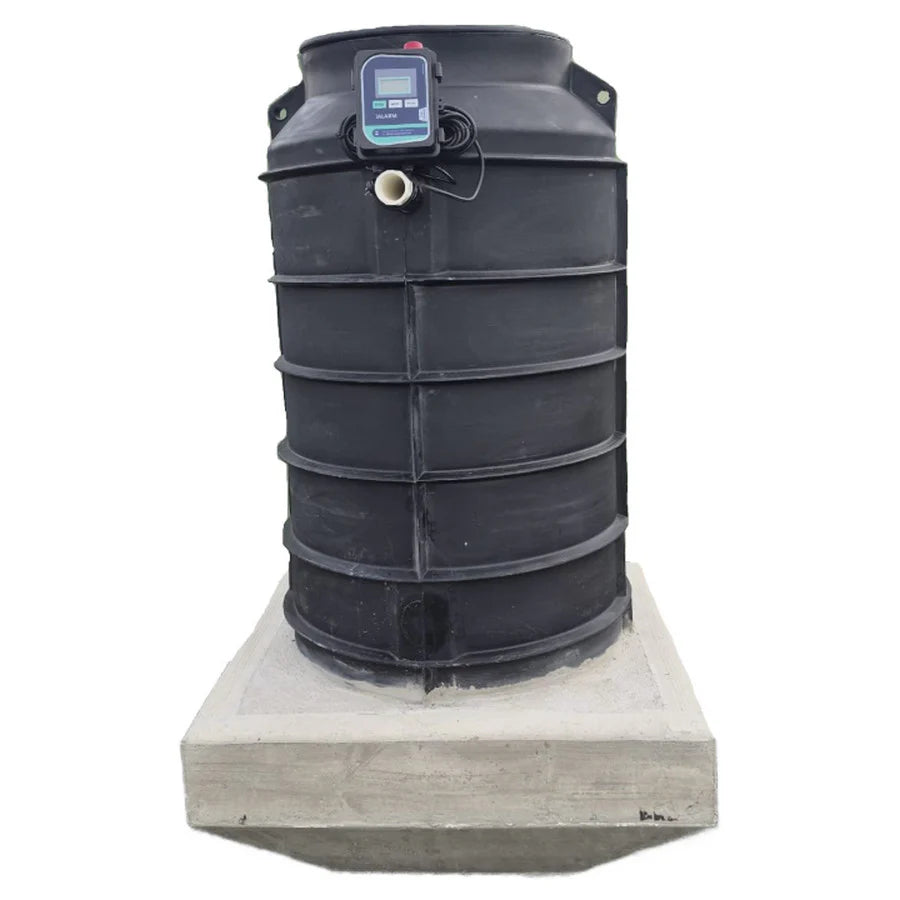

The pump chamber is traffic-rated with a cast iron lid for where it is needed to be positioned in driveway and has a concrete ballast for applications or where there is a high water table. The concrete ballast has a unique shaped base to reduce install time.

The pump chamber comes fully assembled so can be installed, connected, backfilled, and commissioned all within a few hours.

This chamber is installed below the surface with the pump inside the chamber, so any noise is eliminated, and no tank is visible on your property.

Ideal Situation:

• Collecting rainwater, greywater and or blackwater
• Large whole house domestic installations
• Whole house sewage pump chamber up to a 3 bedroom house
• Where a pump chamber is needed to be positioned in a driveway
• High water table applications

Features

• Traffic-rated pump chamber for driveway applications
• Concrete ballast to stop tank floating in high water table applications
• Unique shaped concrete ballast to reduce shovel work
• The pump chamber comes fully assembled with 50mm outlet.
• 50mm stainless steel industrial rated pump options
• High level alarm is installed to give an early warning of any pump problems

Dimensions

Pump chamber dimensions: 1000mm in diameter x 2070mm high
Concrete ballast dimensions: 1200mm x 1200mm
